Flat roof drains fall into five working types: interior (primary) drains piped down through the building, retrofit insert drains that slip into old drain pipes during a reroof, overflow or secondary drains set above the primary inlet, scuppers through a parapet, and siphonic drains that run the pipe completely full. Every type is sized the same way under the 2021 International Plumbing Code (IPC): roof area times rainfall rate times 0.0104 gives gallons per minute, and the drain and pipe must carry that flow.
This guide is the product-level companion to our overview of the whole flat roof drainage system. It covers drain bodies, clamping rings, domes and retrofit inserts by part and by brand, then works a full sizing example with the code tables.
Key numbers at a glance
These are the figures that decide drain type, size and count on a low-slope roof. Each comes from a named code section, manufacturer data sheet or cost publisher, and local amendments or site conditions can change them.
| Figure | Value | Source |
|---|---|---|
| Rainfall to flow conversion | gpm = rainfall (in/hr) × roof area (sq ft) × 0.0104 | 2021 IPC Section 1106.2.1, Equation 11-1 |
| Capacity of a 4 in vertical storm drain | 180 gpm (5 in: 311 gpm; 6 in: 538 gpm) | 2021 IPC Table 1106.2 |
| Residential overflow drain inlet height | 2 in above the low point of the roof | 2021 IRC Section R903.4.1 |
| Minimum scupper opening height | 4 in | 2021 IPC Section 1106.5; 2021 IBC Section 1502.3 |
| Weight of ponded water | 5.2 psf per inch of depth | IBC rain load equation R = 5.2(ds + dh), explained in STRUCTURE magazine |
| Typical flat roof drain repair | $70 to $500 | Fixr flat roof repair cost guide, updated January 27, 2026 |
What are the types of flat roof drains?
The types of flat roof drains are interior drains, retrofit (insert) drains, overflow drains, scuppers and siphonic drains, plus gutters on roofs that slope to an open edge. Interior drains do most of the work on commercial roofs. Overflow drains and scuppers are the code-required backup. Retrofit drains are a reroof product, and siphonic drains are an engineered system for very large roofs.
| Drain type | What it is | Where it fits | Example products | Code hook |
|---|---|---|---|---|
| Interior (primary) drain | Bowl-shaped body set in the deck, with a clamping ring and dome strainer, piped to a vertical leader inside the building | Commercial roofs, roofs with parapets, roofs too wide to drain to the edge | Zurn Z100, J.R. Smith 1010, Watts RD-100 | 2021 IPC 1102.6 (ASME A112.6.4 or A112.3.1), Table 1106.2 |
| Retrofit (insert) drain | Wide flange with a stem that slides into the existing drain pipe and seals inside it | Reroofs where the old bowl and pipe stay in place | OMG Hercules RetroDrain, Thunderbird retrofit drains | ANSI/SPRI RD-1 seal test; OMG cites ASME A112.6.4 certification |
| Overflow (secondary) drain | A second drain whose inlet sits above the roof low point, or a drain with a built-in water dam | Any roof where the perimeter would trap water if primaries clog | Zurn Z100 with -W2 to -W4 internal water dam, Smith Fig. 1070 and 1080 | 2021 IPC 1108; 2021 IBC 1502.2; 2021 IRC R903.4.1 |
| Scupper | An opening through a parapet or edge, usually with a conductor head and downspout | Small roofs, edge drainage and overflow duty | Thunderbird through-wall parapet drains | 2021 IPC 1106.5; 2021 IBC 1502.3 |
| Siphonic drain | A drain with an air baffle that lets the pipe run completely full under negative pressure | Very large roofs, warehouses, stadiums | Zurn and J.R. Smith siphonic lines | 2021 IPC 1102.6 (tested separately), engineered design |
Scuppers and gutters get their own head-to-head breakdown in scuppers vs gutters on a flat roof.
Interior roof drains: the parts and what each one does
An interior roof drain is an assembly of four parts: a drain body (bowl) set into the deck, a clamping ring that squeezes the roof membrane against the body, a dome strainer that keeps debris out of the pipe, and the outlet that connects to the leader. Optional parts such as sump receivers, underdeck clamps and extensions adapt the drain to the deck and insulation thickness.
Drain body: cast iron vs PVC, ABS and sheet metal
Most commercial interior drains use a coated cast iron body. The Zurn Z100 is a 15 in diameter Dura-Coated cast iron body, the J.R. Smith 1010 is a 15-1/4 in (390 mm) diameter body, and the Watts RD-100-BED is epoxy-coated cast iron. Watts lists PVC (suffix -60) and ABS (suffix -61) bodies with socket outlets as options on the RD-100-BED data sheet, and those plastic bodies glue straight onto plastic storm piping.
| Body material | Strengths | Watch-outs | Example from a data sheet | Source |
|---|---|---|---|---|
| Coated cast iron | Heavy, stays put in the deck, wide outlet range (2 to 8 in on the Z100), long service history | Coating wears; old bowls rust and crack, and bolts seize | Zurn Z100: 26 to 28 lb, 103 sq in dome open area | Zurn Z100 specification sheet, rev. 03/19/26 |
| PVC or ABS body | Light, will not rust, solvent-welds to matching plastic pipe | Must match the pipe material and local code acceptance; fire-rated assemblies may limit plastic | Watts RD-100-BED with -60 PVC or -61 ABS body | Watts RD-100-BED engineering specification |
| Copper or stainless steel | Corrosion resistant, fabricated in many shapes, common on small and residential flat roofs | Thinner than cast iron; check gauge and outlet fit | Thunderbird copper and stainless bottom and side outlet drains | Thunderbird Products roof drain catalog |
| Spun aluminum | One-piece body with no welded seams, light, the usual retrofit insert material | Stem sits inside the old pipe, so the flow path narrows | OMG Hercules RetroDrain: 0.125 in spun aluminum, 12 in stem | OMG and Johns Manville Hercules RetroDrain product pages |
Clamping ring
The clamping ring (Zurn calls it a combination membrane flashing clamp and gravel guard, J.R. Smith a combined flashing clamp and gravel stop) bolts down onto the drain flange and compresses the roof membrane and flashing plies between ring and body. It is the waterproofing joint of the whole drain. A ring that is cracked, missing bolts or bolted over wrinkled membrane is one of the most common roof drain leak sources.

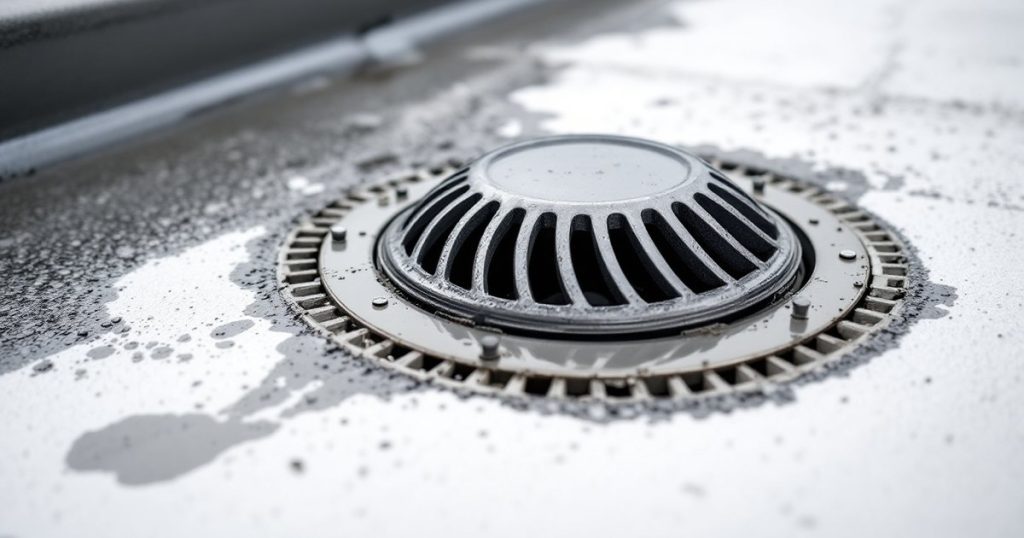

Dome strainer
The dome strainer keeps leaves, gravel and debris out of the leader while leaving enough open area for flow. Zurn lists the Z100 dome open area at 103 sq in and sells replacement domes in plastic, cast iron, bronze and aluminum, each about 12-1/2 in in diameter and 4-1/2 in tall. Watts lists 137 sq in of free area for the RD-100-BED with an 8 in high self-locking polyethylene dome. A missing dome lets debris straight into the pipe, where it is much harder to clear.
Sump receivers, underdeck clamps and extensions
A sump receiver is a flat collar that spreads the drain’s load on a metal deck and sets the bowl slightly below the deck surface. An underdeck clamp locks the body to the deck from below. Extensions raise the clamping ring to the top of the insulation. Zurn lists all three as Z100 suffixes (-R, -C and -E or -EA), and Watts includes a receiver, adjustable extension and deck clamp on the RD-100-BED.
Retrofit (insert) drains for a reroof
A retrofit drain is a new drain flange with a long stem that slides into the existing drain pipe and seals against the inside of that pipe with a mechanical seal. The old cast iron bowl stays in place, no interior plumbing work is needed, and the roofer flashes the new membrane to the retrofit flange. It is the standard fix when an old bowl is too corroded to rework during a reroof.
The seal is what matters. ANSI/SPRI RD-1, the performance standard for retrofit roof drains, requires the backflow seal to hold a 10 ft head of water (4.33 psi) for 24 hours without visible leakage, according to a December 2012 Professional Roofing article by Dan Genovese of OMG Roofing Products. That article notes that 1980s insert drains were often sealed with rags, mop strands or mastic, which can leak into the building when a leader backs up in a storm.
OMG’s Hercules RetroDrain is the best-documented example. Per OMG and the Johns Manville product page, it has a one-piece 0.125 in spun aluminum body, a 12 in drain stem, a 17.5 in diameter flange with a depressed sump, a cast aluminum clamping ring, a 7 in cast aluminum dome or 5.5 in SuperDome, and a U-Flow mechanical seal for PVC and cast iron pipe. Roofing Contractor reported in 2021 that the Hercules, Hercules Plus and SpeedTite lines in 3, 4, 5 and 6 in sizes were certified by QAI Laboratories to ASME A112.6.4 and CSA B79.
The trade-off is capacity. The stem sits inside the old leader, so its inside diameter is smaller than the original pipe. On a roof where the original drains were sized tightly, the designer should check the retrofit drain’s published flow rate against the IPC 1106.2.1 calculation before committing.
| Option at reroof | Typical time per drain | When it makes sense | Source |
|---|---|---|---|
| Rework the existing drain (clean, re-tap bolts, new hardware) | About 2 hours for estimating | Drain is relatively new and not caked with rust and asphalt | Professional Roofing, December 2012 |
| Retrofit insert drain | 15 to 30 minutes on average (Professional Roofing); about 1 hour (Roof Medic) | Bowl or ring is corroded but the pipe below is sound | Professional Roofing, December 2012; Roof Medic retrofit drain guide |
| Plumber replaces the drain body | Up to 2 hours, plus interior access | Cracked bowl, failed piping, specifier requires new drains, union scope | Professional Roofing, December 2012 |
Overflow and secondary roof drains
An overflow (secondary) roof drain is a backup that only starts flowing when water rises above the primary drain inlet, so a clogged primary cannot pond the roof past its design depth. The 2021 IPC Section 1108.1 and 2021 IBC Section 1502.2 require secondary drains or scuppers wherever the roof perimeter extends above the roof in a way that would trap water if the primary drains back up.
Three IPC rules shape the product choice:
- Independent inlet and outlet. IPC 1108.1 allows primary and secondary drains made as a single assembly only if each has its own inlet and outlet.
- Separate discharge. IPC 1108.2 requires the secondary system to discharge separately from the primary, above grade, where occupants or maintenance staff would normally see it. Water pouring from an overflow outlet is the signal that the primaries are blocked.
- Full sizing. IPC 1108.3 sizes the secondary system with Section 1106 at the same rainfall rate as the primary, and the flow through the primary system is not counted.
Overflow drains come in two physical forms. A standpipe or water-dam drain looks like a primary drain but has a raised internal or external dam: Zurn sells 2, 3 and 4 in internal water dams for the Z100 (suffixes -W2, -W3, -W4), and J.R. Smith offers the Fig. 1070 standpipe and Fig. 1080 external water dam types. J.R. Smith’s technical data states the external water dam type is usually preferred because the dam keeps debris away from the dome and passes more overflow with less head build-up than the standpipe.
One gap most product pages miss: the 2021 IBC structural rain-load provisions now base the secondary system on a 15-minute storm or twice the 100-year hourly rainfall, while the 2021 IPC still sizes secondary drains at the hourly rate. STRUCTURE magazine’s walk-through of the 2021 IBC shows the secondary flow roughly doubling (172 gpm to 358 gpm in its Cedar Rapids example) and advises the structural and plumbing engineers to coordinate. The code-by-code detail for overflow scuppers is in our guide to overflow scupper code requirements.
Scuppers and siphonic drains: where they fit
Scuppers drain through a wall instead of down through the building, and siphonic drains move far more water per pipe size than gravity drains. Both are covered in depth on their own pages. This section gives only the sizing rules that tie them to interior drains so the three can be compared on the same roof.
For scuppers, IPC 1106.5 requires an opening at least 4 in high and at least as wide as the circumference of a roof drain sized for the same area. A roof area that needs a 5 in drain therefore needs a scupper at least 15.7 in wide (3.1416 × 5 in). The 2021 IRC uses a different residential shortcut: an overflow scupper three times the size of the roof drain, at least 4 in high, with its inlet 2 in above the low point. Sizing and detailing for edge outlets are on our scupper drain page.
A siphonic drain looks like a conventional drain but adds an air baffle that keeps air out of the pipe at peak flow, according to J.R. Smith’s technical data. With the pipe running full, several drains can tie into one level horizontal collector with smaller pipe than a gravity system needs. These systems are engineered, and the IPC treats them separately from the gravity tables. The design trade-offs are in our siphonic roof drain guide.
How to size flat roof drains under the 2021 IPC
To size a flat roof drain, convert the design rainfall on each drain’s catchment area into gallons per minute with IPC Equation 11-1 (gpm = rainfall × area × 0.0104), then pick the drain outlet and pipe size whose capacity in IPC Table 1106.2 meets or beats that flow. IPC 1106.2 also requires checking the result against the drain manufacturer’s published flow rate for that model and size.
Step 1: find the design rainfall rate
IPC Section 1106.1 bases sizing on the 100-year, 1-hour rainfall from IPC Figures 1106.1(1) through 1106.1(5) or approved local weather data. IPC Appendix B (Table B101) lists the same 100-year, 1-hour rates for major cities, though the appendix is informative and only applies where adopted. The last two columns below are Roofing Brief arithmetic from those rates and Table 1106.2.
| City | 100-year, 1-hour rainfall (in/hr) | Flow per 1,000 sq ft of roof (gpm) | Max roof area per 4 in vertical drain at 180 gpm (sq ft) | Max roof area per 5 in vertical drain at 311 gpm (sq ft) |
|---|---|---|---|---|
| Miami, FL | 4.7 | 48.9 | 3,682 | 6,363 |
| Houston, TX | 4.6 | 47.8 | 3,763 | 6,501 |
| Dallas, TX | 4.0 | 41.6 | 4,327 | 7,476 |
| Atlanta, GA | 3.7 | 38.5 | 4,678 | 8,082 |
| Chicago, IL | 3.0 | 31.2 | 5,769 | 9,968 |
| New York, NY | 3.0 | 31.2 | 5,769 | 9,968 |
| Phoenix, AZ | 2.5 | 26.0 | 6,923 | 11,962 |
| Denver, CO | 2.4 | 25.0 | 7,212 | 12,460 |
Source: rainfall from 2021 IPC Appendix B, Table B101; capacities from 2021 IPC Table 1106.2; flow and area columns are Roofing Brief calculations (rainfall × 1,000 × 0.0104, and capacity ÷ (rainfall × 0.0104)). They ignore wall runoff, which IPC 1106.4 adds at half the wall area, and they assume the drain model itself is rated for the flow.
Step 2: read the pipe capacity tables
IPC Table 1106.2 sets the maximum flow in storm drain piping, both vertical and horizontal by slope. IPC Table 1106.3 sets the maximum flow for vertical leaders. The vertical leader column runs slightly higher than the vertical drain column, so check the piping against both tables before settling on a size.
| Pipe size (in) | Vertical drain (gpm), Table 1106.2 | Horizontal at 1/8 in per ft (gpm) | Horizontal at 1/4 in per ft (gpm) | Round vertical leader (gpm), Table 1106.3 |
|---|---|---|---|---|
| 2 | 34 | 22 | 31 | 30 |
| 3 | 87 | 55 | 79 | 92 |
| 4 | 180 | 115 | 163 | 192 |
| 5 | 311 | 165 | 234 | 360 |
| 6 | 538 | 344 | 487 | 563 |
| 8 | 1,117 | 714 | 1,010 | 1,208 |
| 10 | 2,050 | 1,311 | 1,855 | Not listed |
Source: 2021 IPC Tables 1106.2 and 1106.3, as reproduced in state adoptions of the 2021 IPC. Your jurisdiction may have amended these values.
Step 3: a worked sizing example
Here is the full calculation for a 100 ft by 200 ft (20,000 sq ft) flat roof in Dallas with a parapet on all sides, split into four equal drainage areas with one drain in each. It is a Roofing Brief worked example using code tables, not a stamped design.
- Design rainfall. Dallas is 4.0 in/hr in IPC Appendix B.
- Area per drain. 20,000 sq ft ÷ 4 drains = 5,000 sq ft each.
- Flow per drain. 4.0 × 5,000 × 0.0104 = 208 gpm.
- Drain and vertical pipe. A 4 in vertical drain carries 180 gpm, which is too small. A 5 in carries 311 gpm (Table 1106.2) and a 5 in leader 360 gpm (Table 1106.3), so each drain gets a 5 in outlet.
- Horizontal branch. At 1/8 in per ft, 5 in carries 165 gpm (too small) and 6 in carries 344 gpm, so use 6 in. At 1/4 in per ft, 5 in carries 234 gpm and works.
- Main horizontal drain. All four drains total 832 gpm. At 1/8 in per ft, 8 in carries 714 gpm (too small), so use 10 in (1,311 gpm). At 1/4 in per ft, 8 in carries 1,010 gpm and works.
- Manufacturer check. Confirm the chosen drain model’s published flow rating is at least 208 gpm at the expected head, as IPC 1106.2 requires.
- Secondary system. Under IPC 1108.3 each area needs another 208 gpm of overflow capacity with the primaries ignored: four 5 in overflow drains on separate piping, or scuppers at least 4 in high and 15.7 in wide. If the structural engineer applies the 2021 IBC twice-hourly rate (8.0 in/hr), the secondary flow per area becomes 416 gpm.
- Water load check. With overflow inlets 2 in above the roof and an assumed 3 in of hydraulic head at the overflow, the IBC rain load is 5.2 × (2 + 3) = 26 psf. The hydraulic head depends on the overflow drain or scupper geometry, so this number belongs to the structural engineer.
Fewer large drains or more small ones?
Doubling the area per drain doubles the flow, which pushes every pipe up a size. The table compares two ways to drain the same 20,000 sq ft Dallas roof. More drains usually mean shorter flow paths to each drain, smaller pipe and less ponding if one clogs, at the cost of more penetrations to flash.
| Layout | Flow per drain | Vertical drain size | Branch at 1/8 in per ft | Secondary drains needed | Source |
|---|---|---|---|---|---|
| 4 drains, 5,000 sq ft each | 208 gpm | 5 in (311 gpm) | 6 in (344 gpm) | 4 overflow drains or scuppers | Roofing Brief calculation from 2021 IPC Tables 1106.2 and 1106.3 |
| 2 drains, 10,000 sq ft each | 416 gpm | 6 in (538 gpm) | 8 in (714 gpm) | 2 overflow drains or scuppers | Roofing Brief calculation from 2021 IPC Tables 1106.2 and 1106.3 |
How many drains does a flat roof need?
A flat roof needs at least one drain at every low point, plus a secondary drain or scupper for each drainage area where a parapet would trap water. Beyond that minimum, the count is set by flow: divide the total design flow by the capacity of the drain size you want to use, then lay drains out so each serves a roughly equal area with a clear slope path to it.
Using the city table above, a 10,000 sq ft roof in Houston produces 478 gpm at 4.6 in/hr. That is three 4 in drains (180 gpm each, 540 gpm total) or two 5 in drains (311 gpm each, 622 gpm total), before secondary drainage. In Denver at 2.4 in/hr, the same roof produces 250 gpm and two 4 in drains cover it. Roof geometry, valleys and rooftop equipment often add drains beyond the arithmetic minimum.
Residential flat roofs: what IRC R903.4 requires
For one- and two-family homes, 2021 IRC Section R903.4 requires roof drains at each low point unless the roof is sloped to drain over its edges, and scuppers placed level with the roof surface where they are used. Section R903.4.1 adds secondary (emergency overflow) drains or scuppers wherever the roof perimeter would trap water if the primary drains back up.
The residential overflow rules are specific. Overflow drains must be the same size as the roof drains, with the inlet flow line 2 in above the low point of the roof. Overflow scuppers must be three times the size of the roof drains, at least 4 in high, set in the adjacent parapet with the inlet 2 in above the low point. On a small parapet roof over a porch or addition, a common layout is a copper or stainless bottom-outlet drain at the low point plus a through-wall overflow scupper. Washington and some other states amend R903.4.1, so confirm the local text.
Roof drain brands compared
Zurn, J.R. Smith and Watts make the cast iron interior drains found in most commercial plumbing specifications (Zurn notes the Z100 is listed in MasterSpec). Thunderbird Products fabricates copper and stainless drains in sizes that suit smaller and residential roofs, and OMG Roofing Products makes the Hercules line of retrofit insert drains. The specs below come only from each manufacturer’s own data sheet or product page. Model numbers and options change, so pull the current sheet before ordering.
| Brand and model | Type | Body and size | Dome or strainer | Notable options | Source |
|---|---|---|---|---|---|
| Zurn Z100 | Primary interior drain | 15 in Dura-Coated cast iron; 2 to 8 in outlets; 26 to 28 lb | Low-silhouette Poly-Dome, 103 sq in open area; cast iron, bronze and aluminum domes available | -W2/-W3/-W4 internal water dams, -R sump receiver, -C underdeck clamp, -AR acid-resistant epoxy | Zurn Z100 specification sheet and product page |
| J.R. Smith 1010 | Large general-purpose roof drain | 15-1/4 in (390 mm) body; 8 and 10 in outlets furnished with a 20 in flange | Low-profile polyethylene dome; aluminum and cast iron domes listed | Combined flashing clamp and gravel stop; underdeck clamp; caulk, no-hub or threaded outlets | J.R. Smith Fig. 1010 drawing and roof drain technical data |
| Watts RD-100-BED | Large-area drain with sump | Epoxy-coated cast iron, 2 to 8 in pipe sizes; optional PVC or ABS body | 8 in high self-locking polyethylene dome; 137 sq in free area | Accutrol weir, 2 in external water dam, vandal-proof dome, sediment bucket | Watts RD-100-BED engineering specification |
| Thunderbird Products | Fabricated bottom-outlet, side-outlet, retrofit and overflow drains | Copper, stainless steel, or TPO- or PVC-clad stainless; hand-made in the USA | Cast aluminum powder-coated dome strainer on parapet drains | Combined drain-with-overflow units; separate overflow drain; clamping rings sold separately | Thunderbird Products roof drain catalog |
| OMG Hercules RetroDrain | Retrofit insert drain | 0.125 in spun aluminum, 12 in stem, 17.5 in flange with sump; 3 to 6 in | 7 in cast aluminum dome or 5.5 in SuperDome | U-Flow mechanical seal; TPO- and PVC-coated flanges; ASME A112.6.4 and CSA B79 certified per OMG | OMG and Johns Manville product pages; Roofing Contractor, 2021 |
How a roof drain is flashed into the membrane
A roof drain is flashed in one of two ways: the membrane is clamped between the drain body and a bolted clamping ring, or the membrane is heat-welded to a drain flange that is factory-clad in matching TPO or PVC. Both are usually set inside a drain sump, a tapered depression around the drain, so the clamping ring does not create a ring of standing water.
NRCA recommends drain sumps at all internal drain locations unless tapered insulation already provides enough slope, according to a September 2025 Professional Roofing article by NRCA’s Maciek Rupar. NRCA suggests the sump be at least the drain bowl diameter plus 24 in wide, so a 12 in bowl needs a sump of at least 36 in by 36 in. Prefabricated “target sumps,” such as Hunter Panels’ 4 ft by 4 ft and 8 ft by 8 ft hinged products, ship pre-assembled from tapered polyiso.
A typical clamping-ring installation on a single-ply roof runs in this order. Always follow the membrane manufacturer’s detail for the specific system and warranty.
- Set the drain body (or retrofit insert) and fasten it so the flange sits at or slightly below the finished sump surface.
- Install the tapered sump insulation with a four-way slope steeper than the field slope of the roof.
- Run the membrane into the sump without wrinkles; NRCA cautions that round or deeply recessed sumps can wrinkle the membrane where it meets the drain.
- Apply the manufacturer’s water cut-off sealant on the drain flange under the membrane.
- Cut the membrane opening to the bowl, punch the bolt holes and set the clamping ring.
- Tighten all clamping-ring bolts evenly, replacing any missing or seized bolts.
- Reinstall and fasten the dome strainer, then water-test the drain.
For membrane-clad drains, Thunderbird’s single-ply instructions call for fastening the flange to the substrate, laying the membrane over it, cutting the opening and heat-welding the membrane to the clad flange. For built-up roofs, the same instructions call for two plies extending 18 in past the drain flange, with the flange set in roofing mastic and primed with asphalt primer.
Common roof drain failures and how to maintain drains
Most roof drain problems are blockages, loose or broken clamping rings, corroded bowls and drains set higher than the surrounding roof. Positive drainage should leave a roof dry within 24 to 48 hours after rain, according to IKO Commercial writing in Waterproof! Magazine. Water that sits longer than that around a drain usually points to one of the failures below.
| Failure | What you see | Usual fix | Source |
|---|---|---|---|
| Clogged dome or sump | Ponding ring around the drain after rain | Clear debris; clean drains at least yearly | Fixr flat roof repair guide |
| Missing or broken dome | Debris in the leader, slow drainage inside the pipe | Replace the dome with the manufacturer’s part | Zurn Z100 replacement dome FAQ |
| Loose or seized clamping-ring bolts | Leak directly below the drain | Cut out bolts, re-tap holes, reset ring with new hardware | Professional Roofing, December 2012 |
| Cracked cast iron bowl | Leak that is hard to trace | Retrofit insert drain or plumber replacement | Professional Roofing, December 2012 |
| Drain sits above the roof surface, no sump | Standing water just outside the clamping ring | Add a tapered sump at reroof | NRCA, Professional Roofing, September 2025 |
| Unsealed retrofit stem | Water inside the building during heavy storms | Replace with a retrofit drain whose seal meets ANSI/SPRI RD-1 | Professional Roofing, December 2012 |
| Overflow tied into the primary piping | No visible warning when primaries clog | Repipe secondary to discharge separately above grade | 2021 IPC Section 1108.2 |
A basic maintenance routine takes a few minutes per drain:
- Inspect every drain in spring and fall and after major storms, and schedule an annual flat roof inspection, which Fixr recommends.
- Remove leaves, gravel and debris from the dome and the whole sump.
- Confirm the dome is present, undamaged and fastened.
- Check each clamping-ring bolt and look for cracks in the ring and wrinkles in the membrane.
- Run water from a hose into the drain to confirm the leader flows freely.
- Confirm overflow drains or scuppers are clear and their outlets are unobstructed.
What does it cost to replace a roof drain?
Flat roof drain repair typically costs $70 to $500 (Fixr, updated January 27, 2026), and HomeGuide lists repairing or adding a roof drain at $70 to $340 on average. Full commercial drain work costs more: a retrofit insert typically runs $250 to $600 per drain installed, while plumber-installed replacements often run $1,500 or more per drain plus roofing labor, according to Raleigh contractor Roof Medic.
| Item | Cost range | What is included | Source |
|---|---|---|---|
| Flat roof drain repair | $70 to $500 | Clearing, resealing or minor drain repair | Fixr, updated January 27, 2026 |
| Repair or add a roof drain | $70 to $340 on average | Residential flat roof drain work | HomeGuide flat roof repair cost guide |
| Retrofit insert drain, installed | $250 to $600 per drain | Insert drain plus rooftop installation | Roof Medic retrofit roof drain guide |
| Plumber-installed drain replacement | $1,500 or more per drain, plus roofing labor | New drain body and pipe reconnection from inside | Roof Medic; Professional Roofing (December 2012) cited flat rates up to $1,500 per drain |
| Drain parts only | $118 bottom-outlet drain; $152 stainless retrofit; $161 TPO- or PVC-clad retrofit; $53 separate overflow drain | Starting list prices, size options vary | Thunderbird Products online store, October 2026 |
Most of the price is access and flashing, not the drain itself. On a reroof, drain work is usually cheapest when it is bundled into the membrane replacement, since the clamping ring and sump have to be reflashed either way. Commercial pricing varies with drain count, roof system, union requirements and interior access, so get line-item drain pricing in the reroof bid.
Which flat roof drain should you pick?
Pick the drain by the job: new construction, reroof, membrane type, overflow need or roof size. The table maps common situations to the drain type that usually fits. A licensed design professional or the local plumbing official has the final say on sizing and secondary drainage.
| Situation | Usual choice | Why |
|---|---|---|
| New commercial roof over insulation | Coated cast iron interior drain with sump receiver, underdeck clamp and extension | Matches deck and insulation height; standard specified product (Zurn Z100, Smith 1010, Watts RD-100) |
| Reroof, old bowl corroded, pipe sound | Retrofit insert drain with an ANSI/SPRI RD-1 mechanical seal | No interior plumbing work; new flange for the new membrane |
| Reroof, cracked bowl or failed pipe | Plumber replacement of the drain body | An insert cannot fix a broken pipe below the roof |
| TPO or PVC single-ply roof | Membrane-clad drain heat-welded to the field membrane, or a clamping ring per the membrane maker | Welded joint matches the rest of the roof |
| Parapet roof that would trap water | Separate overflow drains or water-dam drains, or overflow scuppers | Required by IPC 1108, IBC 1502.2 and IRC R903.4.1 |
| Small residential flat roof or deck | Copper or stainless bottom-outlet drain plus a through-wall overflow scupper | Fabricated sizes fit small roofs; meets the IRC 2 in overflow rule |
| Very large warehouse roof | Engineered siphonic system | Full-bore flow cuts pipe size and underground connections |
| Corrosive exhaust or chemical exposure | Acid-resistant coated drain (Zurn -AR) or PVC or ABS body | Standard coatings may degrade |
Frequently asked questions
What are flat roof drains called?
Flat roof drains are usually called interior roof drains, primary roof drains or area drains. The edge versions are scuppers, and the backup versions are overflow or secondary (emergency) drains. On a reroof, a drain that slips into the old pipe is called a retrofit or insert drain. Plumbing codes such as the 2021 IPC simply use “roof drain” for the inlet at the roof surface.
What are the best drainage options for a flat roof?
Interior drains piped down through the building suit large commercial roofs and roofs with parapets. Scuppers through the wall suit small roofs and overflow duty. Gutters suit roofs that slope to an open edge. Siphonic drains suit very large roofs where an engineer wants fewer, smaller pipes. Most parapet roofs need a primary system plus a separate secondary system under IPC Section 1108.
How many drains should a flat roof have?
At least one drain at each low point, which is the IRC R903.4 rule for homes, plus a secondary drain or scupper where a parapet would trap water. On commercial roofs the count comes from flow: multiply roof area by the local rainfall rate and 0.0104 (IPC Equation 11-1), then divide by the capacity of the drain and pipe size you plan to use.
What are the drainage requirements for a flat roof?
Under the 2021 IRC, drains go at each low point unless the roof drains over its edges, and overflow drains sit with their inlets 2 inches above the low point. Under the 2021 IPC and IBC, primary and secondary systems are sized for the design rainfall, secondary piping discharges separately above grade, and scuppers are at least 4 inches high. Local amendments can change these rules.
Do roof drains need a trap?
Usually not. IPC Section 1103.1 requires leaders and storm drains to be trapped only where they connect to a combined sewer that also carries sanitary waste. Leaders and storm drains connected to a building storm sewer are not required to be trapped. Check the local plumbing code, since some cities with combined sewers write their own trap rules.
How often should roof drains be cleaned?
Fixr recommends an annual flat roof inspection and drain cleaning at least once a year, more often where trees overhang the roof. A practical schedule is spring and fall plus after major storms. Clear the dome and the sump, confirm the dome is fastened, check clamping-ring bolts, and run water to confirm the leader is not partly blocked.
Do plumbers install roof drains?
On new construction, the drain body and piping are usually part of the plumbing scope and the roofer flashes the membrane into the clamping ring. On reroofs, roofers often install retrofit insert drains without a plumber. A plumber is normally brought in when the bowl is cracked, the piping must be replaced, the specifier requires new drains or a union agreement assigns the work.
