Ice Dam Protection Membrane Code Requirements: IRC R905.1.2 and Coverage Rules

The ice dam protection membrane code requirement comes from IRC R905.1.2, which mandates self-adhering polymer-modified bitumen ice and water shield underlayment in any region where the average January temperature is 25 degrees Fahrenheit or lower. The membrane must extend from the lowest edge of the roof (eave) up the slope to a point at least 24 inches inside the exterior wall line of the heated space (the warm wall line). Most major brands (Grace Ice and Water Shield, CertainTeed WinterGuard, GAF StormGuard, Owens Corning WeatherLock, IKO StormShield) meet or exceed the IRC requirement. The same membrane is also required in valleys, around penetrations, and at low-slope sections regardless of climate zone. This guide walks through the code language, the regional applicability, the coverage rules, and the brand spec comparison every roofer and homeowner needs to understand.

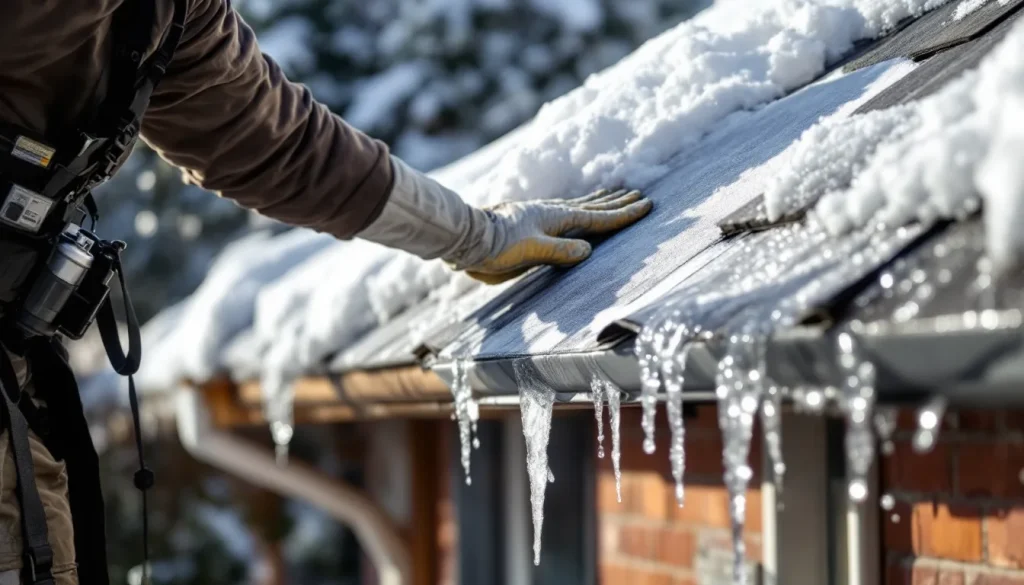

What ice dams actually are

Ice dams form when warm air leaking from the heated interior melts snow on the upper portion of a roof. The melt-water runs down the slope until it reaches the colder eave (which extends past the heated wall and gets no upward heat flow). At the cold eave, the water refreezes into an ice ridge. The dam grows with each melt-refreeze cycle, eventually forming a 6 to 18 inch ridge of solid ice. Behind the dam, liquid water pools and backs up underneath the shingles. Asphalt shingles are designed to shed water flowing down, not to seal against water pooling and backing up. Water finds nail holes, lap seams, and step flashing gaps, then enters the deck and the attic.

The damage cascade: drywall stains on the bedroom ceiling, water-damaged insulation, mold in the wall cavities, rotten fascia and soffit, ruined hardwood floors. A single ice dam event can cost $5,000 to $25,000 in interior damage repair. Insurance covers most of it, but the deductible plus the disruption is what homeowners avoid by installing ice and water shield correctly the first time. For the full root-cause analysis, see our ice dam prevention guide.

IRC R905.1.2 in plain language

The 2021 International Residential Code section R905.1.2 reads (paraphrased): “In areas where the average daily temperature in January is 25 degrees Fahrenheit (-4 deg C) or less, or where there is a possibility of ice forming along the eaves causing a backup of water, an ice barrier shall be installed. The ice barrier shall consist of at least two layers of underlayment cemented together, or a self-adhering polymer-modified bitumen sheet. The barrier shall extend from the lowest edges of all roof surfaces to a point not less than 24 inches inside the exterior wall line of the building.”

Three operative phrases. First, “average daily temperature in January 25 deg F or less” defines where the requirement applies. This is a long-term climatic average, not a single-day low. NOAA publishes the January means by county. Second, “where there is a possibility of ice forming along the eaves causing a backup of water” is a discretionary trigger that lets the local AHJ (Authority Having Jurisdiction) require the barrier even in marginal-climate areas if local history supports it. Third, “24 inches inside the exterior wall line” defines the coverage extent. On a 1 ft overhang with a 6/12 pitch, that means roughly 36 inches of membrane measured along the roof slope (12 inches of overhang + 24 inches interior + slope adjustment).

Where the code applies (region by region)

States where ice and water shield is universally required statewide: Maine, New Hampshire, Vermont, Massachusetts, Rhode Island, Connecticut, New York (most counties), New Jersey (north and central), Pennsylvania (north and central), Ohio (most), Michigan, Indiana (north), Wisconsin, Minnesota, Iowa, North Dakota, South Dakota, Montana, Wyoming, Colorado (mountain counties above 6,500 ft), Utah (Wasatch Front and Uintas), Idaho, eastern Washington, eastern Oregon.

States with partial or county-specific applicability: Maryland (western counties), Virginia (Appalachian counties), West Virginia (all), Kentucky (eastern), Missouri (northern), Kansas (northern), Nebraska, Illinois (Chicago metro and north), Alaska (universally required), New Mexico (northern mountain counties), Nevada (Reno-Tahoe and northern), California (Sierra Nevada and Lake Tahoe counties), Hawaii (not required, no qualifying climate).

States where ice and water shield is not code-required but is best-practice for valley and penetration coverage: all Southeast and Gulf Coast states (Florida, Georgia, Alabama, Mississippi, Louisiana, Texas), Arizona (except northern mountain counties), southern California, and the desert Southwest. Even where not required at the eave, the same membrane is universally required in valleys and around penetrations under the manufacturer warranty terms of all major shingle brands. For state-by-state climate zone reference, see our 2026 roofing cost report regional section.

Coverage rule: the 24 inch inside the warm wall calculation

The “24 inches inside the warm wall line” rule trips up roofers who don’t think through the geometry. The warm wall line is the exterior face of the heated interior wall, not the edge of the roof. On a typical home with a 12 inch roof overhang, the warm wall sits 12 inches back from the eave edge. The membrane has to cover from the eave (extending past the warm wall by 12 inches of overhang) to a point 24 inches further up the slope past the warm wall. Total horizontal coverage measured at the wall: 12 inches + 24 inches = 36 inches of horizontal distance.

That 36 inches of horizontal distance becomes more measured along the slope, because the slope is longer than the horizontal projection. On a 4/12 pitch (1.054 multiplier), 36 inches horizontal becomes 38 inches along the slope. On a 6/12 pitch (1.118), it becomes 40 inches along the slope. On an 8/12 pitch (1.202), it becomes 43 inches along the slope. On a 12/12 pitch (1.414), it becomes 51 inches along the slope. Most ice and water shield rolls are 36 inches wide, which covers the 4/12 to 6/12 case in a single course. For 8/12 and steeper, a second course of 12 inches lapped onto the first covers the requirement. For the pitch math reference, see our roof pitch chart.

Additional code-required coverage locations

Beyond the eave, ice and water shield is required in five other locations regardless of climate zone:

• Roof valleys. All valleys get a full-width strip of ice and water shield centered on the valley line, minimum 36 inches wide (18 inches each side of the valley centerline). Some installers use 72 inch wide membrane for extra-wide valley coverage on steep roofs.
• Around all roof penetrations. Plumbing vent stacks, gas vent caps, electrical mast pipes, satellite dish brackets, attic vents, exhaust vents. The membrane wraps the penetration and extends 6 to 12 inches in each direction from the penetration base.
• Around skylights and dormers. Full perimeter ice and water shield wrap, extending at least 18 inches up the high side and to the eave on the low side.
• At chimney saddles and crickets. Full coverage of the saddle plus 6 inches onto the surrounding deck.
• At low-slope sections under 4/12 pitch. Any roof plane below 4/12 (where shingles are not the primary water-shedding mechanism) gets full-coverage ice and water shield wall-to-wall, with shingles or modified bitumen on top.

For the underlayment context around this requirement, see our deep-dives on ice and water shield, peel and stick underlayment, and felt vs synthetic underlayment.

Major brands and product specifications

The mil thickness corresponds to membrane durability: 40 mil is the IRC minimum, 45 to 50 mil is the volume seller for residential, 60 to 65 mil is premium for high-snow regions or metal roof applications. The HT (high-temp) versions are required for metal roof installation because regular ice and water shield can soften and slide on a metal roof reaching 180 deg F in summer sun. For the metal-specific application, see our peel and stick underlayment guide.

Cost: how the membrane shows up on your quote

Ice and water shield supply house pricing in 2026 runs $80 to $150 per roll (1 roll covers 200 sq ft, or 2 squares). Per square allocated cost: $40 to $75 for material, plus $15 to $25 for install labor. Total installed: $55 to $100 per square of coverage area. On a typical 22 square roof with eave coverage (about 4 squares of membrane area) plus valleys (about 2 squares) plus penetrations (about 1 square), the total membrane area is 7 squares, costing $385 to $700 installed. That allocated cost is usually buried in the underlayment line item on a quote rather than broken out separately. Ask your contractor to itemize if you want to see the math.

HT (high-temp) and 65 mil premium versions cost 30 to 60 percent more per roll. CertainTeed WinterGuard HT runs $130 to $200 per roll. IKO GoldShield at 65 mil runs $150 to $220 per roll. For metal roofs and high-snow regions, the premium is worth it. For standard asphalt shingle installs in moderate climate, 40 mil is sufficient and code-compliant. For full reroof cost context, see 2026 roofing cost report and our asphalt shingle roof cost installed breakdown.

Installation rules that affect code compliance

Five install rules that determine whether the membrane actually works:

• Clean deck. Ice and water shield bonds to the deck via self-adhesive. Dust, sawdust, and oil prevent adhesion. The deck must be swept clean before unrolling.
• Temperature window. Most brands require deck temperature 40 deg F or higher for full adhesion. Below 40 deg F, the membrane lays flat but doesn’t bond fully, leaving gaps for wind-driven water entry. Cold-weather install requires a primer (sold separately) or a heat-activated formulation.
• Lap seams. Side laps minimum 3.5 inches, end laps minimum 6 inches. Each lap is the failure point if not pressed firmly with a J-roller.
• Drip edge first or last? Code-compliant install: drip edge at the eave goes UNDER the ice and water shield. Drip edge at the rake goes OVER the ice and water shield. This sequence ensures water on top of the membrane sheds outboard of the fascia.
• Roof nailing. All nails through ice and water shield self-seal because the membrane is rubberized. This is the whole point of the product (regular synthetic underlayment doesn’t self-seal). Don’t worry about nail count; the self-seal is automatic.

For the broader roof leak prevention context and how ice and water shield interacts with the rest of the system, see how to fix a roof leak and our roof leak repair walkthrough.

What happens when the code is ignored

Three failure modes when a contractor skips ice and water shield in a code-required region:

Mode 1: ice dam water entry within 1 to 5 years. The first ice dam event drives water under the shingles. With no membrane to block it, water enters the deck and shows up as a stained ceiling in the rooms below. Repair cost: $5,000 to $25,000 for interior damage plus a partial reroof.

Mode 2: failed insurance claim. The insurance adjuster inspects the roof and discovers no membrane was installed where code required it. The claim is denied as “improper installation, not a covered loss.” For the insurance claim methodology, see our 2026 roofing insurance report.

Mode 3: failed building inspection. If a permit was pulled, the building inspector requires visible ice and water shield at the eave before final inspection. Skipping it means failed inspection and a stop-work order until the bottom 4 feet of new roof is torn off and the membrane installed.

What the membrane does not protect against

The membrane has three limits. First, heavy ice dam pressure: a tall ice dam holding back standing water exerts significant lateral force on shingles above the membrane and water eventually finds a path. The real fix is preventing ice dams via attic ventilation (soffit intake plus ridge exhaust), R-49 insulation, and air sealing of ceiling penetrations. See our ice dam prevention deep-dive. Second, wind-driven rain past the membrane termination 24 inches inside the warm wall is above the membrane line. Third, the membrane does not melt existing ice dams; that calls for heat cable for ice dams and ice dam removal intervention.

Bottom line on the code requirement

IRC R905.1.2 requires ice and water shield from the eave to 24 inches past the warm wall line in any region with an average January temperature 25 deg F or below. Most of the northern half of the United States, all of Alaska, and the mountain counties of Colorado, Utah, California, and New Mexico fall under this requirement. The membrane is also required in valleys, around penetrations, and at low-slope sections regardless of climate. The volume brands (Grace, CertainTeed WinterGuard, GAF StormGuard, Owens Corning WeatherLock, IKO StormShield) all meet code at 40 to 45 mil thickness. Cost adds $40 to $80 per square of coverage area to a reroof, typically buried in the underlayment line item. Skipping this membrane in a code-required region creates insurance, code-violation, and lawsuit exposure that dwarfs the install savings. For the broader install context, see 2026 roofing cost report and our 2026 severe weather roof damage report for the climate-event tail risk this membrane mitigates.
